1/3 Scale Super Cub

Who doesn't love a Super Cub! Our 30% scale Super Cub kit stands alone as the BEST giant scale kit on the market today. No other kit is as complete. Absolutely every hardware item necessary is included: socket head bolts, aircraft lock nuts, Kwik-Links, all pre-formed scale fittings, etc. The complete 38 page instruction manual contains over 200 photos and covers every step of the construction incomplete detail. There is also information on how to accomplish all extra scale details to make your model really stand out at the field. The landing gear is exact scale in detail right down to the functioning bungee cords and scale bungee covers.

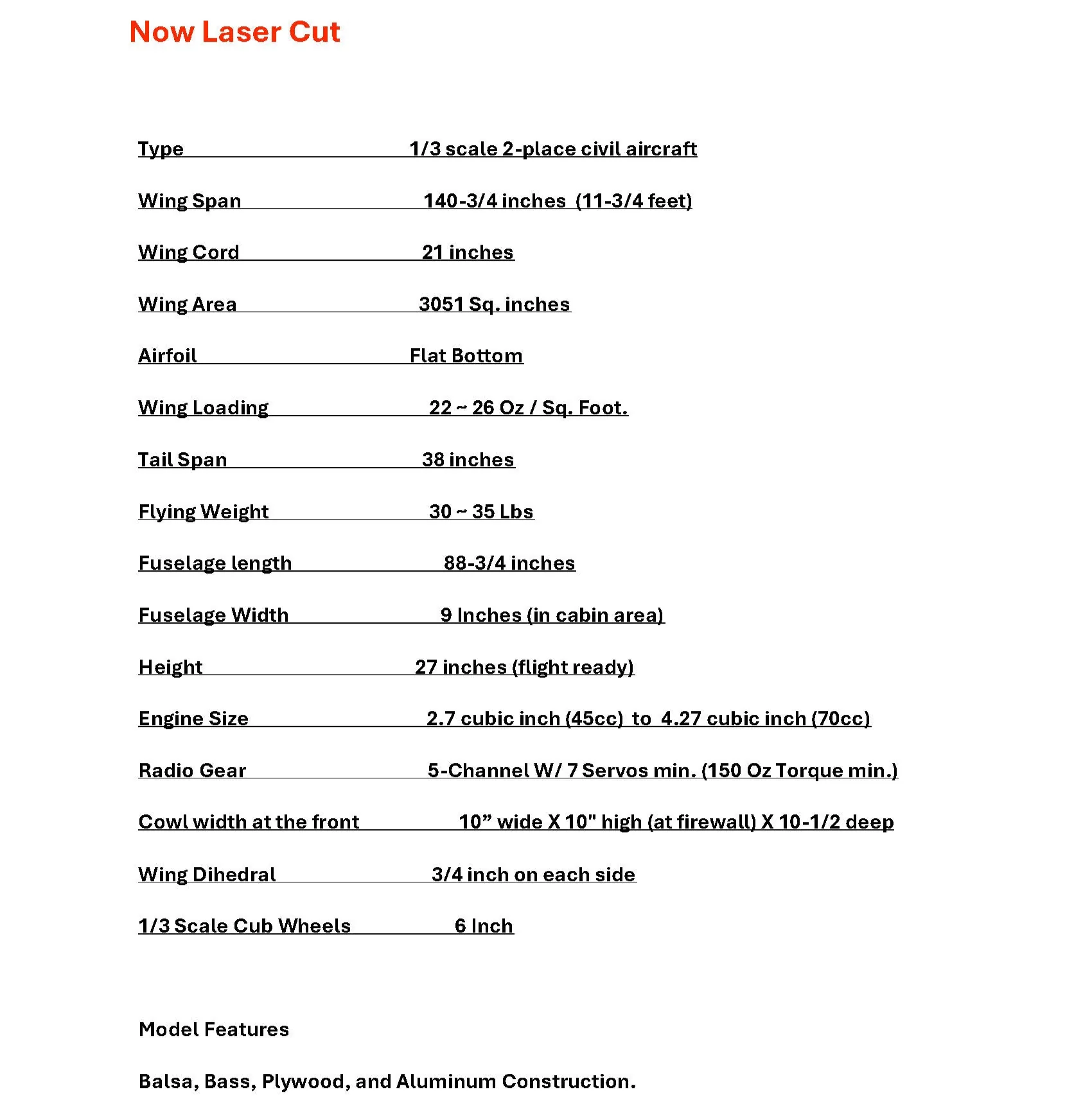

Type                                                    1/3 scale 2-place civil aircraft

Wing Span                                          140-3/4 inches  (11-3/4 feet)

Wing Cord                                          21 inches

Wing Area                                          3051 Sq. inches

Airfoil                                                 Flat Bottom

Wing Loading                                     22 ~ 26 Oz / Sq. Foot.

Tail Span                                             38 inches

Flying Weight                                     30 ~ 35 Lbs

Fuselage length                                   88-3/4 inches

Fuselage Width                                   9 Inches (in cabin area)

Height                                                 27 inches (flight ready)

Engine Size                                         2.7 cubic inch (45cc)  to  4.27 cubic inch (70cc)

Radio Gear                                          5-Channel W/ 7 Servos min. (150 Oz Torque min.)

Cowl width at the front                       10” wide X 10" high (at firewall) X 10-1/2 deep

Wing Dihedral                                    3/4 inch on each side

1/3 Scale Cub Wheels                        6 Inch



Model Features

Balsa, Bass, Plywood, and Aluminum Construction.

Separate “plug in” wing panels.

Functional Flaps

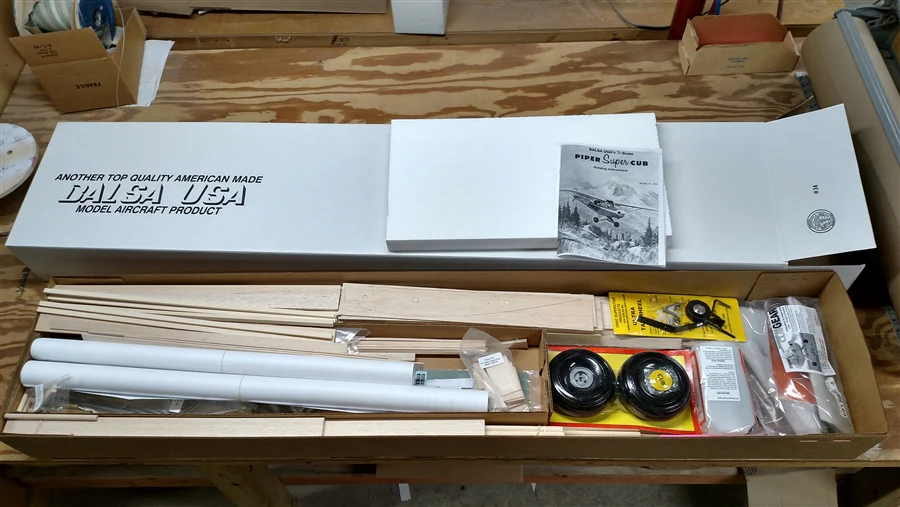

Kit includes

Rolled Full Size Plans & Photo Instructions.

Complete Hardware package (including all push rods and cables).

Complete interior kit (includes seats and instrument panel)

Robart Scale Landing Gear W/ Scale "Cub" Wheels

Scale leaf spring tail wheel assembly W/wheel

Scale “pull, pull” rudder control system W/ bell crank and cables

Scale “Bear Cub” decals

Scale fiberglass cowl

Scale 3-View Drawings.



Items Needed to Complete

Covering material (4, 5-meter rolls Orartex recommended)

Paint, Radio, Engine


$357.71

Original: $1,192.38

-70%
1/3 Scale Super Cub—

$1,192.38

$357.71

Product Information

Shipping & Returns

Description

Who doesn't love a Super Cub! Our 30% scale Super Cub kit stands alone as the BEST giant scale kit on the market today. No other kit is as complete. Absolutely every hardware item necessary is included: socket head bolts, aircraft lock nuts, Kwik-Links, all pre-formed scale fittings, etc. The complete 38 page instruction manual contains over 200 photos and covers every step of the construction incomplete detail. There is also information on how to accomplish all extra scale details to make your model really stand out at the field. The landing gear is exact scale in detail right down to the functioning bungee cords and scale bungee covers.


Type                                                    1/3 scale 2-place civil aircraft

Wing Span                                          140-3/4 inches  (11-3/4 feet)

Wing Cord                                          21 inches

Wing Area                                          3051 Sq. inches

Airfoil                                                 Flat Bottom

Wing Loading                                     22 ~ 26 Oz / Sq. Foot.

Tail Span                                             38 inches

Flying Weight                                     30 ~ 35 Lbs

Fuselage length                                   88-3/4 inches

Fuselage Width                                   9 Inches (in cabin area)

Height                                                 27 inches (flight ready)

Engine Size                                         2.7 cubic inch (45cc)  to  4.27 cubic inch (70cc)

Radio Gear                                          5-Channel W/ 7 Servos min. (150 Oz Torque min.)

Cowl width at the front                       10” wide X 10" high (at firewall) X 10-1/2 deep

Wing Dihedral                                    3/4 inch on each side

1/3 Scale Cub Wheels                        6 Inch

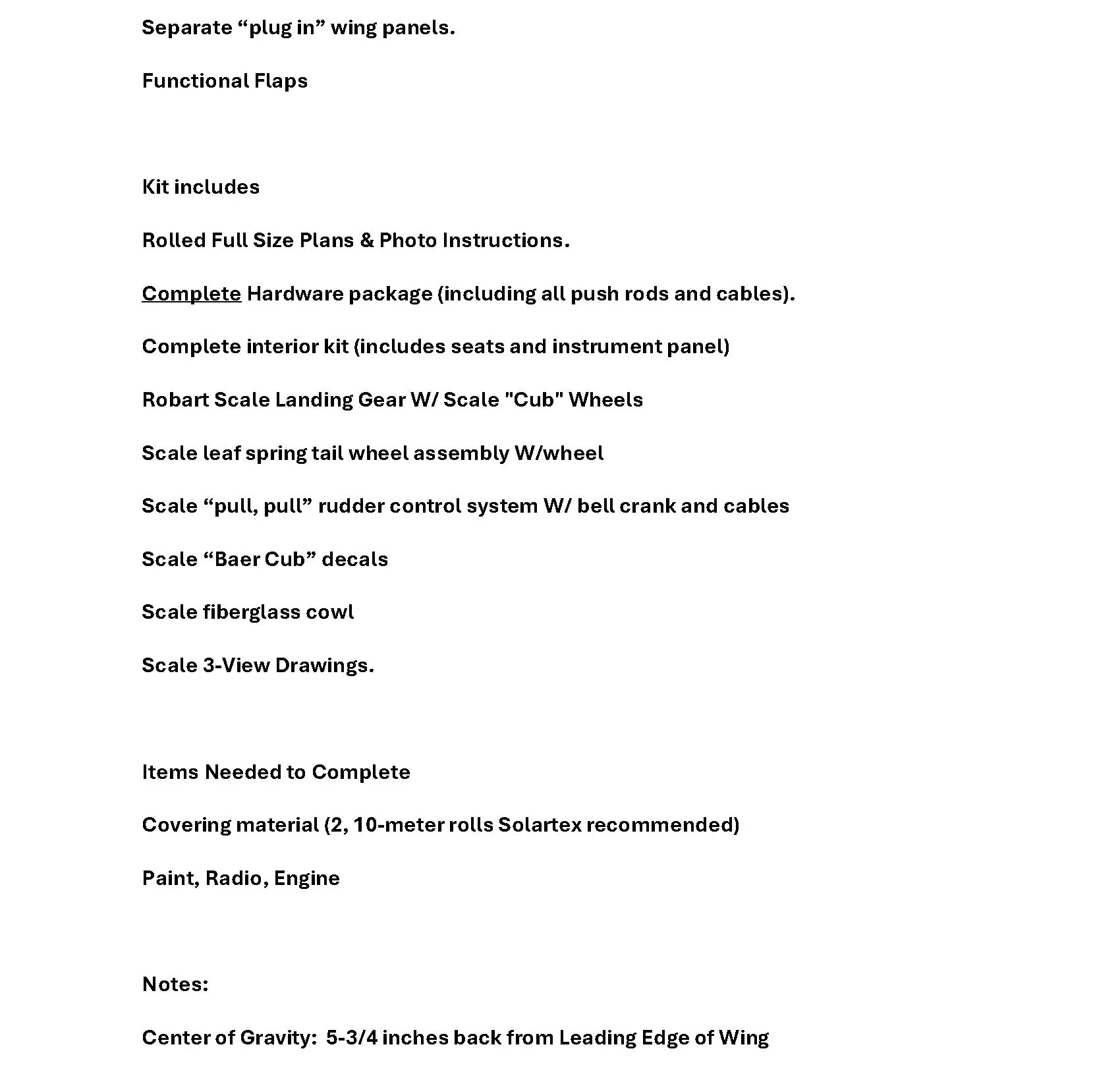

Model Features
